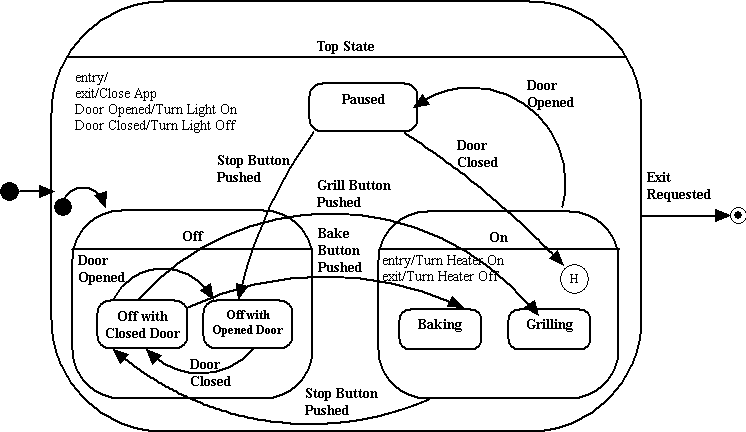

This example demonstrates how hierarchical state structure alows to economize on the state machine description and simplify implementation of behavior of this simple application. Let’s consider an abstract oven. At the highest level of abstraction (lowest level of detail) it can be considered to be “On” or “Off”. However, it is a dual mode oven: when “On” it can be either “Baking” or “Grilling”. Naturally, we want the oven to turn the heater on whenever it goes into the “On” state and turn it off whenever the oven is not on. Well, every oven has a door. We will want to turn the light on whenever we open the door and turn it off whenever we close it. (The door doesn’t have a window, so we don’t need the light when it’s closed.) If we open the door while the oven is “On” and then close the door we expect the oven to return to its business, whatever it had been before we opened the door, i.e. either “Baking” or “Grilling”. This functionality requires introduction of one more state, “Paused”, which will be positioned on the same hierarchy level as “On” and “Off”. We definitely don’t want the oven to turn on if the door is opened, so we have to break the “Off” state into “Off with Closed Door” and “Off with Opened Door”. The events that need to be processed (in addition to the ubiquitous “Exit Requested”, which is present in any application): “Stop button pushed”, “Bake button pushed”, “Grill button pushed”, “Door opened”, “Door closed”. Actions: “Turn the heater on”, “Turn the heater off”, “Turn the light On”, “Turn the light off”, “Close Application”. The resulting statechart/HSM is shown in the next picture:

It’s conceptually convenient to define one composite state, top state, as the root of the state machine hierarchy (Initial and Final pseudo states can be excluded, though). This simple example demonstrates in several ways how exactly HSM eliminates repetition.

  1. If we don’t define the exit transition from the top state but we want the system to exit whenever requested, we will need to explicitly create transitions to the final state from every other state.

  2. Note that for the “Stop Button Pushed” and “Door Opened” events we need only define one transition each—from the more general “On” state rather than individually from “Baking” and “Grilling”.

  3. Thanks to assigning “Turn Heater On” and Turn Heater Off” as entry and exit actions, respectively, for the “On” state, we avoid the need to include them into every transition into and from the “Baking” and “Grilling” states.

  4. HSM Semantics can be extended to include non-overriding behavior inheritance between states. It means that the substate can inherit the transition actions for some event from its superstate not only when it doesn’t have them within itself, but also even when it already has a transition defined for that event. In the latter case, unless override is chosen, the actions assigned to an event in the superstates will be added to the list of actions assigned in the substate. The actual target state for the transition will be the one defined in the substate. The notation in top left corner of the “Top State” indicates that the “Turn Light On” action must be executed whenever the event “Door Opened” happens and the “Turn Light Off” action must be executed whenever the event “Door Closed” happens, regardless of the actual state of the oven (it is always in the “Top State” ).

  5. Please take a look at the transition from the “Paused” state on the “Door Closed” Event. It ends not at the “On” state, but at a circle with letter “H” in it. This is a “To History” type of transition. The circle with the letter “H” denotes a shallow-history pseudostate. It means that the actual target state of the transition will be the most recent active direct substate of the state containing this pseudostate. If it were not for this HSM feature, we would have to define states like “Paused while Baking” and “Paused while Grilling” to be able to return the oven to the state it was in before the door was opened.

Please also check out our step-by-step tutorial about implementing this example.
